FLIPSKY FSESC 75300 84V High Current 350A ESC Base On Vesc with Aluminum Case Water Cooling Enclosure for E-Foil Fighting Robot Surfboard AGV Robot
4.9 (34 items)
Limited Time Sale$135.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219553260 | Release Date | 2026/05/03 | List Price | $90.40 | Model Number | 219553260 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

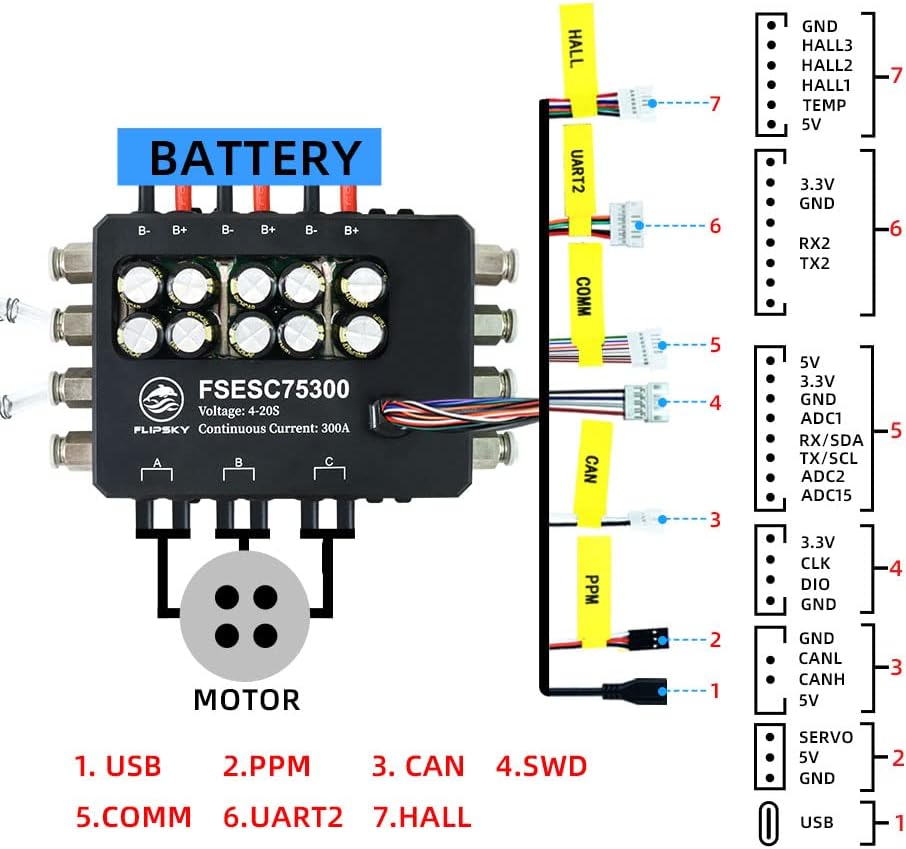

Feature:Regenerative brakingThe CPU adopts the STM32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;Sensored or sensorless operation + hybrid modeConfigurable RPM-, current-, voltage- and power limitsInput source: PPM, ADC, NRF,UART,PASCommunication ports: USB, CAN, UART,SPI,IICThrottle curve and ramping for all input sourcesSeamless 4-quadrant operationMotor revolution, ampere hour, watt hour countingReal-time data analysis and readout through the communication port.Adjustable protection against:Low input voltageHigh input voltageHigh motor currentHigh input currentHigh regenerative braking current (separate limits for the motor and the input)High RPM (separate limits for each direction)Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurateMotor wire: 8AWGPower cable: 8AWGWaterproof level(with water cooling enclosure):IP67
- Voltage:14-84V( safe for 3-20S)
- Continuous Current : 50V/300A,75V/200A
- Max Current :350A
- Supported sensors: ABI, HALL, AS5047,AS5048A
- EPRM:150000
- Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors)
- Flipsky quality produce and good service for you
| Size | 297*115*45mm |
|---|---|
| Color | Black |
| Material | Aluminum |
| Brand Name | FLIPSKY |
| Model Name | 75300 |
| Item Weight | 1.55 Kilograms |
| Manufacturer | Flipsky |
| Package Weight | 1.51 Kilograms |
| Suggested Users | unisex-adult |
| Included Components | FSESC 75300 84V High Current 350A ESC |
| Warranty Description | 6m |
| Item Dimensions LxWxH | 7.87 x 4.72 x 1.97 inches |
| Item Package Dimensions L x W x H | 11.3 x 7.8 x 2.91 inches |
